Choosing the right Shipyard Gantry Crane manufacturer is a major decision for global shipbuilding operations. A crane may lift hundreds of tonnes, but its value depends on safety, precision, uptime, and long-term service. In 2026, buyers need more than attractive prices or impressive brochures. They need manufacturers with proven engineering experience, documented quality systems, and reliable international support.

This guide examines leading manufacturers serving shipyards, marine contractors, and heavy industrial buyers worldwide. It considers lifting capacity, span design, trolley speed, wind resistance, control systems, and customization options. A 600-ton crane must move a vessel block smoothly, even when steel surfaces are uneven and coastal winds change quickly. Installation planning matters too. Port access, foundation strength, power supply, and local technical teams can influence the final result.

Details matter.

We also review certifications, factory capabilities, inspection procedures, spare-parts availability, and after-sales response. Experienced suppliers should provide clear drawings, load calculations, commissioning records, and operator training. However, no ranking can replace a buyer’s own site assessment. Manufacturer information may change, and project conditions are rarely identical. Some suppliers have excellent production capacity but limited service coverage in remote regions. Others offer strong support but fewer options for highly specialized lifting systems.

That limitation deserves attention. This overview aims to support careful comparison, not make an unquestionable decision. Global buyers can use the findings to identify technically capable partners, ask better questions, and reduce avoidable risks before signing a shipyard crane contract.

Table of Contents [Hide]

1 What Is a Shipyard Gantry Crane and How Does It Work?

2 Main Types and Technical Specifications of Shipyard Gantry Cranes

3 How to Evaluate Shipyard Gantry Crane Manufacturers in 2026

4 Top Shipyard Gantry Crane Manufacturers for Global Buyers

5 How to Select, Order, Install, and Maintain the Right Crane

What Is a Shipyard Gantry Crane and How Does It Work?

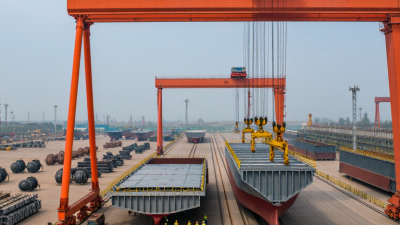

A shipyard gantry crane is a large lifting machine that moves heavy ship sections across an open construction yard. Its steel frame usually has two legs, a top girder, wheels, and a powered hoist. The legs run along parallel ground rails. The hoist travels sideways on the girder, while the crane moves lengthwise along the rails.

During operation, operators position the crane above a load, such as a hull block or engine component. Slings, spreader beams, and certified lifting points connect the load to the hook. The hoist motor raises it vertically. Trolley motors move it horizontally. Travel motors guide the entire crane along the yard. Modern control systems may include overload sensors, emergency stops, anti-sway functions, and remote monitoring.

Real performance depends on more than rated capacity. Rail alignment, wind exposure, uneven ground, and lifting frequency affect safety and service life. A crane rated for 600 tonnes may not handle every load configuration safely. The center of gravity can shift unexpectedly. That assumption can fail.

Experienced teams inspect wire ropes, brakes, hooks, wheels, and electrical systems before demanding lifts. They also verify load charts and weather limits. Small alignment errors can create vibration, noise, and uneven wheel pressure. Maintenance records matter. So does operator judgment. No design is flawless. In practice, careful planning often prevents problems that advanced controls cannot correct.

2026 Best Shipyard Gantry Crane Manufacturers for Global Buyers

What Is a Shipyard Gantry Crane and How Does It Work?

The chart shows representative rated lifting capacities commonly used for different shipyard gantry-crane applications. Small and medium cranes handle blocks, engines, and fabrication components, while large and mega-capacity cranes lift complete ship sections or assembled hull blocks. A shipyard gantry crane operates on parallel ground rails: its legs support the main girder, trolley, and hoisting system, allowing loads to move vertically and horizontally across the assembly area.

Values are representative engineering reference points based on commonly specified shipyard lifting-capacity ranges; actual capacity depends on span, lifting height, duty class, wind conditions, and project requirements.

Main Types and Technical Specifications of Shipyard Gantry Cranes

2026 Best Shipyard Gantry Crane Manufacturers for Global Buyers

Main Types and Technical Specifications of Shipyard Gantry Cranes

Shipyard gantry cranes usually fall into rail-mounted, rubber-tyred, and floating-platform types. Rail-mounted cranes suit fixed assembly lines and large dry docks. Rubber-tyred models offer flexible movement across uneven production zones. Floating cranes support hull lifting near waterfront facilities. Each design changes the required load chart, foundation strength, and maintenance plan.

Typical lifting capacities range from 20 to over 1,000 tonnes. Span lengths commonly reach 30–180 metres, while lifting heights may exceed 80 metres. Dual-trolley systems improve balance during block handling. Variable-frequency drives provide smoother starts and reduce load swing. Operators should also verify wind-speed limits, emergency braking, hook safety factors, and duty classification under ISO 4301-1 or FEM standards.

UNCTAD’s Review of Maritime Transport 2024 reported global fleet capacity above 2.3 billion deadweight tonnes, with maritime trade expected to keep growing. That pressure encourages shipyards to handle heavier blocks faster. However, capacity alone can mislead. A 600-tonne crane may underperform if trolley spacing, rail alignment, or power quality is poor. Site surveys should measure actual block weights, lifting frequency, salt exposure, and wind conditions. These details often reveal the specification gap. One overlooked issue remains operator visibility. Cameras help, but they cannot replace clear sightlines and disciplined signaling.

How to Evaluate Shipyard Gantry Crane Manufacturers in 2026

Choosing a shipyard gantry crane manufacturer in 2026 requires more than comparing quoted prices. Start with documented experience in heavy fabrication, outdoor lifting, and marine environments. Ask for project records showing crane capacity, span, lifting height, duty cycle, and operating conditions. A credible supplier can explain why each design choice fits your yard. Request references from comparable shipyards, not only glossy case studies.

Examine engineering competence through calculations, drawings, and revision histories. The manufacturer should provide clear load charts, weld procedures, inspection records, and material certificates. Independent testing, factory acceptance trials, and calibrated instruments add useful confidence. Check compliance with applicable local standards and rules governing electrical, structural, and lifting safety. Ask how corrosion protection performs near salt spray, and inspect coating specifications instead of accepting vague promises. Details matter here.

After-sales capability often separates a reliable partner from a cheap supplier. Evaluate spare-parts availability, remote diagnostics, technician response times, training, and emergency procedures. Ask who will support commissioning across time zones and who remains accountable after payment. Our early shortlist was too narrow; we focused on price and underestimated operator training. That mistake changed our evaluation sheet. Now we score communication, maintenance access, documentation quality, and realistic delivery schedules. A factory may look impressive, yet unanswered technical questions deserve attention. Site visits can reveal housekeeping, traceability, and whether reported capacity matches actual production discipline.

Top Shipyard Gantry Crane Manufacturers for Global Buyers

Choosing the right shipyard gantry crane manufacturer requires more than comparing prices. Global buyers should examine lifting capacity, span, rail length, wind loads, and duty cycles. These details must match the yard’s actual production schedule.

Experienced manufacturers provide engineered layouts, load calculations, and clear installation drawings. They should explain how the crane performs near saltwater, welding areas, and uneven weather. Look for corrosion-resistant components, sealed electrical cabinets, reliable brakes, and accessible maintenance points. Practical factory experience matters.

Ask for inspection records and references from similar shipyards. Documentation should cover material certificates, testing procedures, operator training, and spare-parts support.

Compliance with local safety rules must be confirmed before purchase. It is easy to overlook foundation tolerances.

A strong manufacturer also offers remote diagnostics and on-site commissioning. Response time matters when a crane stands over a half-built vessel. However, no shortlist is perfect. Buyers should question optimistic delivery promises and unclear warranty limits. A factory visit can reveal workmanship that brochures hide. Small details count.

How to Select, Order, Install, and Maintain the Right Crane

2026 Best Shipyard Gantry Crane Manufacturers for Global Buyers

How to Select, Order, Install, and Maintain the Right Crane

Global shipbuilding demand is becoming less forgiving. UNCTAD’s Review of Maritime Transport 2024 reported that the commercial fleet expanded by about 3.4% in deadweight tonnage from January 2023 to January 2024. This growth increases pressure on shipyards to move steel plates, blocks, and engines safely. Select a crane by rated load, span, lifting height, duty class, wind exposure, and operating temperature. A 100-ton rating alone means little. Ask for the duty-cycle calculation.

Write the purchase specification before requesting quotations. Include rail gauge, wheel loads, power supply, control method, anti-collision functions, corrosion protection, and spare-part availability. Require drawings, material certificates, inspection records, and a factory acceptance test. ISO 4301-1 helps classify crane service conditions, while ISO 9927 supports inspection planning. Do not accept vague promises about “heavy-duty” performance. They age badly.

Installation needs more than placing the crane on rails. Survey foundation levels, check rail alignment, verify electrical protection, and record unloaded travel measurements. Commissioning should include controlled load tests and emergency-stop checks by qualified personnel. Salt air is persistent. Inspect brakes, ropes, hooks, wheels, rails, and control cabinets at defined intervals. The ILO’s safety guidance for shipbuilding and ship repair emphasizes planned risk control and competent supervision. I would still challenge one assumption: a digital maintenance system cannot replace a technician who notices unusual vibration. A spreadsheet can lie.

2026 Best Shipyard Gantry Crane Manufacturers for Global Buyers - How to Select, Order, Install, and Maintain the Right Crane

Decision Stage	Evaluation Dimension	Practical Data or Target Range	Why It Matters	Buyer Verification Checklist
1. Define the Required Crane Configuration
Application	Shipyard operating task	Block assembly, hull erection, ship launching support, steel-plate handling, module positioning, or outdoor material storage.	The duty cycle, lifting accuracy, hook height, and attachment type depend on the main shipyard activity.	Prepare a written lifting plan showing load type, center of gravity, lifting points, travel path, and working area.
Capacity	Safe working load	Common planning bands include 20–100 tonnes for fabrication yards, 100–600 tonnes for large block assembly, and above 600 tonnes for major hull sections. Final capacity must be project-specific.	Capacity affects structural design, foundation loads, motor power, transport requirements, and total project cost.	Confirm the maximum lifted load, load spectrum, future expansion allowance, and whether tandem lifting is required.
Capacity	Tandem or multi-crane lifting	Use synchronized controls and a documented load-sharing method when two or more cranes lift one load.	Uneven load distribution can overload a crane, spreader, rail, or lifting point even when the total load is within the combined rating.	Request load-sharing calculations, synchronization tolerance, emergency-stop logic, and trial-lift procedures.
Geometry	Span and rail gauge	Set the span from the parallel runway-rail centerlines and verify rail alignment, gauge tolerance, curves, expansion joints, and end clearances.	Incorrect rail geometry can cause wheel flange wear, skewing, high drive loads, and premature structural fatigue.	Provide a surveyed site drawing and require the supplier to return approved foundation and rail interface drawings.
Geometry	Lifting height and clearance	Define hook lift, headroom, highest load position, ship height, roof or mast interference, and required clearance above the working envelope.	Nominal lifting height alone does not prove that the crane can safely clear the vessel or surrounding structures.	Check top-of-rail elevation, hook approach, maintenance access, wind clearance, and anti-collision zones.
Environment	Outdoor operating conditions	Specify temperature range, rain, salt spray, humidity, dust, solar exposure, wind speed, lightning protection, and corrosion category.	Shipyards commonly expose equipment to marine corrosion and changing weather conditions, which influence coatings, enclosures, brakes, and electrical systems.	Require environmental design data, coating system specification, enclosure rating, drainage details, and corrosion-protection warranty.
Duty	Classification and duty cycle	Define average operating hours, starts per hour, loaded versus unloaded travel, average lifted percentage, and annual operating days. Use the selected design standard’s duty classification.	A crane used for frequent production lifting requires a different fatigue design and component life than a crane used for occasional maintenance.	Ask for the duty-class calculation, load spectrum, fatigue category, design life assumptions, and component service factors.
2. Compare and Qualify Potential Manufacturers
Technical capability	Engineering scope	Supplier should be able to provide general arrangement drawings, structural calculations, electrical schematics, foundation loads, inspection plans, manuals, and commissioning procedures.	A complete engineering package reduces interface problems between the crane, rails, foundations, power supply, and shipyard production systems.	Include the required document register and approval milestones in the request for quotation.
Quality	Quality-management system	Prefer documented quality controls covering design review, welding procedure qualification, welder qualification, material traceability, dimensional inspection, painting, and functional testing.	Large welded structures and heavily loaded components require traceable manufacturing controls.	Request quality certificates, inspection and test plans, sample nonconformance reports, and records of corrective actions.
Structural quality	Welding and inspection	Specify approved welding procedures, qualified welders, non-destructive testing requirements, weld acceptance criteria, and repair controls.	Fatigue performance depends strongly on weld quality, geometry, residual stress, and inspection discipline.	Confirm the required visual, ultrasonic, magnetic-particle, or radiographic inspection coverage with the project engineer.
Compliance	Applicable standards	Typical references may include ISO 4301 for crane classification, EN 13001 for crane design principles, IEC 60204-32 for electrical equipment of lifting machines, and applicable local lifting regulations.	The correct standard depends on the installation country, contract requirements, and authority having jurisdiction.	State the governing standards in the tender documents and identify any deviations before order placement.
Experience	Relevant project record	Evaluate completed projects with similar capacity, span, outdoor exposure, lifting duty, tandem operation, and local regulatory requirements.	Similarity of operating conditions is more useful than a general claim of manufacturing experience.	Request anonymized project data, reference contacts where permitted, delivery scope, commissioning results, and operating history.
Service	After-sales support	Assess spare-parts availability, remote diagnostics, service response time, local technicians, training, and long-term software support.	Downtime in a shipyard can interrupt block assembly and vessel schedules, making service capability a major lifecycle factor.	Define response times, stocked spare parts, escalation contacts, training hours, and warranty exclusions in the contract.
3. Order, Inspect, and Accept the Crane
Commercial order	Contract scope	Include design, manufacturing, factory testing, packing, transport, installation supervision, commissioning, operator training, documentation, and spare parts.	Unclear scope creates additional costs and delays at the site interface stage.	Use a responsibility matrix covering supplier, civil contractor, electrical contractor, installer, and shipyard operations team.
Schedule	Procurement milestones	Typical milestones are technical clarification, design approval, material procurement, fabrication, factory inspection, shipment, site assembly, commissioning, and final acceptance.	Long-lead items such as motors, drives, brakes, control panels, wheels, and custom steelwork can affect the critical path.	Require a baseline schedule, manufacturing progress reports, hold points, and a formal change-control process.
Inspection	Factory acceptance testing	Review dimensions, weld quality, coating condition, electrical continuity, insulation resistance, brake operation, limit switches, controls, alarms, and documentation.	Factory inspection identifies defects before shipment, when correction is usually faster and less expensive.	Approve a factory acceptance test procedure with measurable pass/fail criteria and signed records.
Testing	Site acceptance testing	Conduct no-load, partial-load, rated-load, travel, emergency-stop, limit-device, interlock, braking, and communication tests as required by the approved test plan.	Site conditions can affect rail alignment, power quality, travel behavior, radio communication, and actual clearance.	Complete punch-list closure, load-test records, operator training, and authority inspections before production release.
4. Installation and Commissioning Requirements
Site readiness	Foundation and rail interface	Verify concrete strength, embedded plates, anchor bolts, rail straightness, rail level, gauge, drainage, access roads, and lifting equipment capacity.	Crane installation depends on civil-work accuracy and safe access for large structural components.	Complete a joint pre-installation survey and record actual dimensions against approved drawings.
Assembly	Erection method	Use an approved method statement covering component lifting, temporary supports, bolted and welded connections, weather limits, exclusion zones, and rescue arrangements.	Gantry erection involves heavy lifts and work at height; uncontrolled assembly can create serious safety risks.	Require lift plans, certified rigging gear, qualified personnel, permit-to-work controls, and daily safety briefings.
Electrical	Power supply and protection	Confirm rated voltage, frequency, short-circuit level, conductor or cable-reel arrangement, grounding, surge protection, isolation, and voltage-drop limits.	Incorrect power parameters can cause drive trips, overheating, control faults, and unsafe restart behavior.	Verify protection coordination, cable routing, earthing continuity, insulation resistance, and power-quality readings.
Safety	Safety systems	Include overload protection, emergency stops, upper and lower hook limits, travel limits, buffers, anti-collision functions, warning devices, access controls, and wind protection where applicable.	Safety systems must address both lifting hazards and long-travel gantry movement.	Test every safety function independently and under realistic operating conditions before handover.
5. Maintenance and Lifecycle Management
Routine maintenance	Inspection frequency	Use daily operator checks, periodic inspections, planned lubrication, brake checks, rope or chain checks, wheel and rail inspections, and electrical cabinet cleaning.	Frequent visual and functional checks help identify defects before they become production failures or safety incidents.	Maintain signed inspection records with defect severity, corrective action, responsible person, and closure date.
Structural maintenance	Fatigue and corrosion monitoring	Inspect welds, high-stress details, bolted joints, wheel assemblies, rail supports, paint breakdown, corrosion, and deformation according to the design risk assessment.	Outdoor shipyard cranes may experience cyclic loading, salt contamination, wind exposure, and localized corrosion.	Use a condition-monitoring plan and arrange qualified inspections when cracks, abnormal deformation, or rapid corrosion are found.
Critical components	Spare-parts strategy	Keep critical items such as brake components, contactors, fuses, sensors, limit switches, drive cooling parts, control batteries, ropes, and selected wheel components available.	Availability of low-cost critical parts can prevent extended downtime while major components are being sourced.	Define minimum stock levels, interchangeability, approved alternatives, storage conditions, and obsolescence controls.
Digital support	Condition monitoring	Consider monitoring of motor current, brake status, overload events, operating hours, fault codes, wheel-skew behavior, wind alarms, and load history.	Trend data can support preventive maintenance and help identify recurring faults.	Confirm data ownership, cybersecurity controls, remote-access permissions, alarm thresholds, and reporting format.
Lifecycle cost	Total cost of ownership	Evaluate purchase price, civil works, installation, energy use, inspections, spare parts, labor, coating renewal, software support, downtime, and eventual refurbishment.	The lowest initial quotation may not provide the lowest cost over the crane’s operating life.	Compare at least a 10-year lifecycle-cost model using the same duty, energy-price, maintenance, and downtime assumptions.
Operational readiness	Training and documentation	Provide training for operators, maintenance personnel, supervisors, and emergency responders, supported by manuals, drawings, spare-parts lists, and inspection forms.	Correct operation and consistent maintenance depend on accessible, site-specific instructions.	Do not close final acceptance until training records, as-built documentation, certificates, and maintenance schedules are complete.

Planning note: Capacity ranges and technical recommendations are general shipyard planning references. Final crane design, classification, testing, installation, and maintenance requirements must be confirmed through the approved engineering calculations, applicable local regulations, and the authority having jurisdiction.
